Clamping Sleeve Installation Position: Notes
WARNING: This page is about a different variant/trim than selected.
- Installed dimension -a- is approximately 1 cm
A - End of bead
1 - Clamping Sleeve
2 - Front Exhaust Pipe
a - Installed Dimension
-- Install the clamping sleeve so that the bolt end -arrow- does not project beyond the lower edge of clamping sleeve.
- Threaded connection points toward the right.
-- Disconnect the exhaust pipe at the disconnecting point -arrow 2- with the :VAS6254 or :VAS6780 .

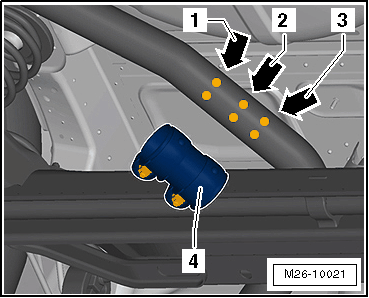

-- When installing, position the clamping sleeve -4- on side markings -arrows 1 and 3-.
-- Install the clamping sleeve so that the bolt end does not project beyond the lower edge of the double clamp -arrow-.
-- Align the exhaust system free of tension.
