Overview - Emissions Control

WARNING: This page is about a different variant/trim than selected.

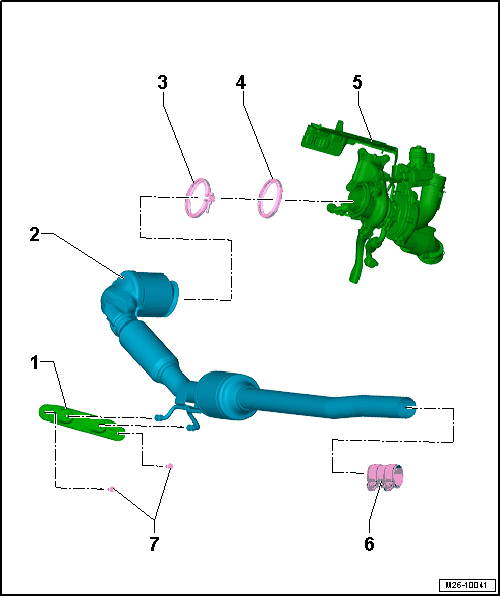

Fig 1: Exploded View Of Emissions Control

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bracket
- For catalytic converter
- To subframe
Catalytic Converter
- With front exhaust pipe
- Protect catalytic converter from shocks and impact stress
- Removing and installing. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING .
V- Clamp
- Replace after removing
- Tightening specification. Refer to OVERVIEW - TURBOCHARGER .
Seal
- Replace after removing
Turbocharger
- Removing and installing. Refer to TURBOCHARGER .
Front Clamp
- Before tightening, align the exhaust system without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Tighten threaded connections evenly.
Bolt
- 23 Nm
