Catalytic Converter, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

Install in reverse order of removal and note the following:

NOTE:

Replace the seal and self-locking nuts.

Coat the exhaust manifold stud bolts with hot bolt paste. Refer to the parts information for the hot bolt paste.

-- Insert the screwdriver -2- into the opening -arrow- on the turbocharger.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry out the seal -1-.

-- Replace the seal -1-.

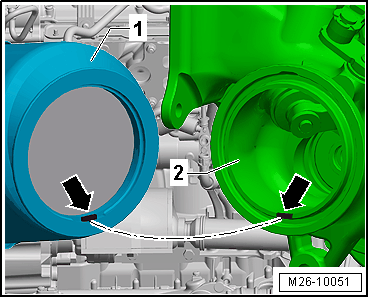

Observe the Installed Position of the Catalytic Converter -1- on the Turbocharger -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The retaining strap and notch -arrows- must interlock.

-- Attach the catalytic converter to the turbocharger and secure the new v - clamp loosely.

-- Tighten the v-clamp.

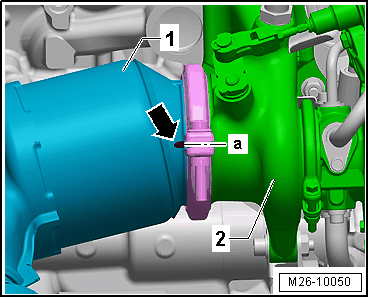

Installed Position of the V-Clamp

-- The opening of the v-clamp -a- must align with the marking -arrow- on the catalytic converter -1-.

-- Install the exhaust system without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
