Knock Sensor 1 -G61-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the A/C Compressor from the bracket and tie it up. Refer to A/C COMPRESSOR . .

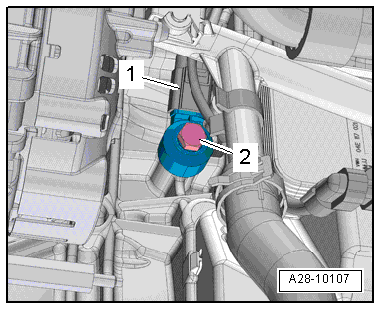

-- Disconnect the connector -1-.

GWWA28-10107Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2- and then the Knock Sensor 1 -G61-.
