Oil Pan Upper Section, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the A/C compressor from the bracket and tie it up. Refer to A/C COMPRESSOR .

-- Remove the oil pan lower section. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .

-- Remove the oil pump. Refer to OIL PUMP, REMOVING AND INSTALLING .

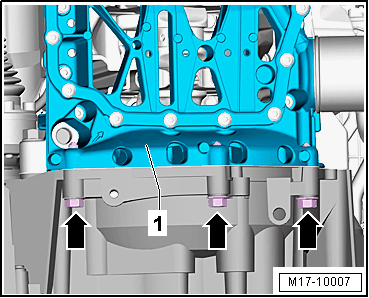

-- Remove the bolts -arrows- for the transmission from the oil pan upper section -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

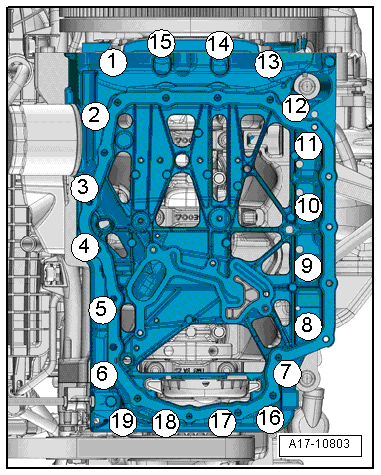

-- Loosen and remove the bolts in the sequence -19 to 1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the bonding between the oil pan upper section -4- and the engine -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- To do so use the :T10561  .

-- The separation takes place between the bolts -3-.

-- Place the :T10561  without tilting on the bonding -arrows-.

-- Drive in the :T10561  -3- using a rubber hammer until it stops -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- At the same time do not tilt the :T10561  .

-- Do not perform any sideways movement using the :T10561  .

-- Do not lift using the :T10561  .

-- Perform the procedure on the other locations as described until the oil pan is loosened.

-- For additional loosening use the :T10383/2  .

-- Then insert the :T10383/2  on the loosened positions where possible.

-- Carefully drive in the wedge with a plastic mallet.

-- Carefully loosen the oil pan lower section from the bond.

-- Move the :T10383/2  and loosen the bonding on the other positions.

-- Carefully lift the oil pan from the cylinder block at the cut-out -arrow- using an extractor lever.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the oil pan upper section from the adhesive.

-- To do so, tap the oil pan lightly using a rubber hammer to loosen it, if necessary.

-- Remove the oil baffle.

Risk of contaminating the lubricating system.

-- Cover open engine components.
