Oil Separator, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the noise insulation. Refer to NOISE INSULATION .

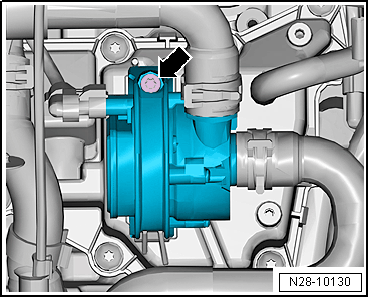

-- Remove the bolt -arrow- and push the Charge Air Cooling Pump -V188- to the side.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the hose -3- for the crankcase ventilation.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the cover -1- for the oil separator at the retainers -2- in direction of -arrow- and remove it.

-- Loosen and remove the bolts in the following sequence: -9 to 1-.

Fig 1: Oil Separator - Tightening Sequence (Loosening 9 to 1)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully loosen the oil separator from the adhesive.
