Sealing Flange With Sensor Wheel, Installing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

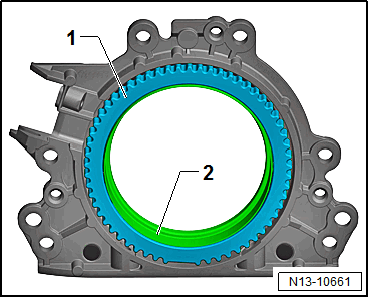

The sealing flange with PTFE-seal is equipped with a sealing lip support ring -2-. This support ring serves the same function of a guide sleeve and must not be removed before installation.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The sealing flange and sensor wheel -1- may not be separated or rotated after being removed from the replacement part packaging.

The sensor wheel -1- retains the installation position via being located on the locating pin of the :T10134 . Refer to Locating Pin .

The sealing flange and seal are one unit and may only be replaced together with the sensor wheel.

The :T10134 retains the installation position to the crankshaft via a guide pin, which is guided into the hole of the crankshaft. Refer to Guide Pin for Gasoline Engines (Red Handle) .

Overview of the :T10134 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A - Tension Surface

B - Nut

C - Assembly Bell

D -
