Sealing Flange, Removing And Installing, Transmission Side: Procedure

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

The transmission is removed.

-- Remove the flywheel. Refer to FLYWHEEL, REMOVING AND INSTALLING .

-- Remove the intermediate plate -1- from the alignment sleeves -A arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Guide the intermediate plate -1- upward.

-- While doing so remove the intermediate plate -1- retaining tab -arrow B- from the opening behind the sealing flange.

-- Position the crankshaft at "TDC". Refer to VALVE TIMING, CHECKING .

-- Remove the oil pan lower section. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .

-- Remove the oil pan upper section. Refer to OIL PAN UPPER SECTION, REMOVING AND INSTALLING .

-- Remove the Engine Speed Sensor -G28-. Refer to Engine Speed Sensor -G28-, REMOVING AND INSTALLING .

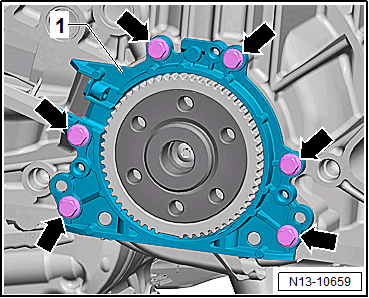

-- Remove the bolts -arrows- for the sealing flange -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

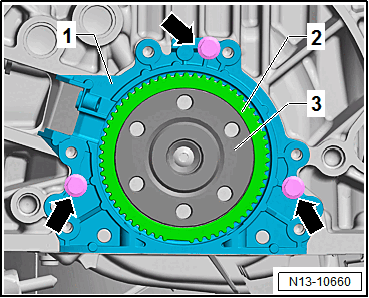

-- To press out, install three M6 x 35 bolts -arrows- in the sealing flange -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The sealing flange -1- is pressed from the crankshaft -3- together with the sensor wheel -2-.

-- Tighten the bolts alternating a maximum ¹ /₂ turn each in the sealing flange.

-- Remove the sealing flange -1- together with the sensor wheel -2-.
