Transmission Side Sealing Flange Tightening Specifications And Sequence

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

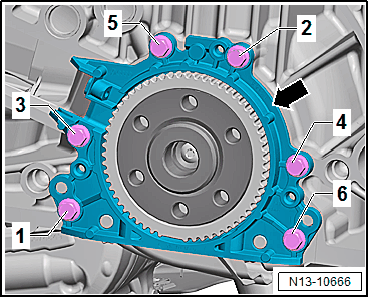

Fig 1: Transmission Side Sealing Flange Tightening Specification And Sequence
GWWN13-10666Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -1 through 6- in the following steps:

Step Component Tightening Specification
1 Bolts -1 through 6- Install by hand all the way
2 Bolts -1 through 6- 10 Nm
