Drive Plate, Installing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

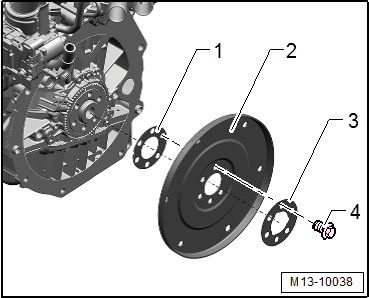

-- First, position the drive plate without the washer -1-.

-- Insert the used bolts -4- and tighten them to 30 Nm.

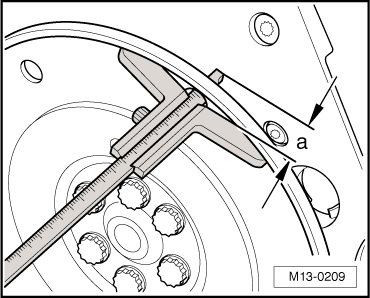

-- Check dimension -a- an three points and calculate mean value.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Specified value: 18.8 to 20.4 mm

NOTE:

Measure through drive plate hole to the control housing cover.

If the specified value is reached, replace all bolts and tighten them.

If the specified value is not obtained:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the drive plate using the shim -1-. Tighten bolts -4- again to 30 Nm.

-- Repeat the measurement. If the specified value is reached, replace all bolts and tighten them.
