Ribbed Belt TENSIONER, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the ribbed belt from the tensioner:
- Vehicles without A/C Compressor. Refer to RIBBED BELT, REMOVING AND INSTALLING, VEHICLES WITHOUT A/C COMPRESSOR
- Vehicles with A/C Compressor. Refer to RIBBED BELT, REMOVING AND INSTALLING, VEHICLES WITH A/C COMPRESSOR

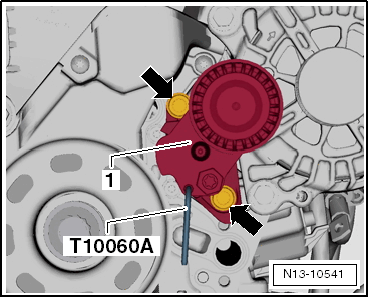

-- Remove the bolts -arrows- and remove the ribbed belt tensioner -1-.
