Turbocharger, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Secure all standard production hose clamps.

-- During installation, all heat shields must be reinstalled at the same location.

NOTE:

If mechanical damage (for example a destroyed compression wheel) is found on the turbocharger, just replacing the turbocharger is not enough. To avoid subsequent damage later, perform the following steps:

Check the air filter housing, air filter element and air duct hoses for contamination.

Check the entire charge air circuit and charge air cooler for foreign objects.

If there are foreign objects in the charge air system, clean the charge air circuit and replace the charge air cooler if necessary.

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the bolts -arrows- and remove the right drive axle heat shield.

GWWN34-11369

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

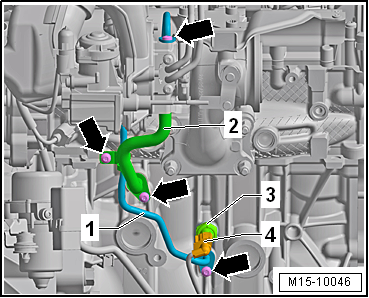

-- Disconnect the connector -4- from the Oil Pressure Switch -F1- -3-.

-- Remove the bolts -arrows- and then remove the oil supply line -1- and oil return pipe -2-.

GWWM15-10046

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connectors -1 and 2- :

GWWN15-10871

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 - For Engine Coolant Temperature Sensor -G62-

2 - For Charge Air Pressure Actuator -V465-

-- Remove the bolt -2- and the screw-type clamp.

GWWA26-11255

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1- and the nuts -arrows- and tie up the catalytic converter.

-- Remove the resonator for the intake air scoop. Refer to INTAKE AIR SCOOP RESONATOR, REMOVING AND INSTALLING .

-- Remove the air duct pipe. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .

-- Push the release button and remove the hose -1- from the EVAP canister.

GWWA15-11375

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- and then remove the crankcase ventilation hose.

-- Open the bracket -1- and remove the coolant hose -2-.

GWWN19-11180

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2-.

GWWA21-10742

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- with :VAS6234 and :T10405 .

-- Remove the support -1- upward.

-- If equipped, loosen the hose clamp -2- and remove the coolant hose.

GWWA19-11545

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- and move the coolant lines -1- to the right.

-- Remove the bolts or nuts -arrows- and remove the heat shield -1-.

GWWN21-10606

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -arrows- and the turbocharger.

GWWA21-10745

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
