Air Duct Pipe, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Free up the air duct hoses on the air duct pipe.

-- Remove the connector from the Charge Air Pressure Sensor -GX26-.

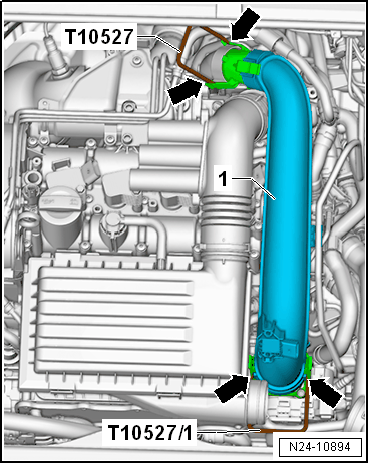

-- Release the retainers -arrows- using the :T10527 and :T10527/1 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the air duct pipe -1-.

-- Release the catches using the :T10527 and remove the air duct pipe.

-- Seal the open connections with clean plugs from the.
