Special Tools

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

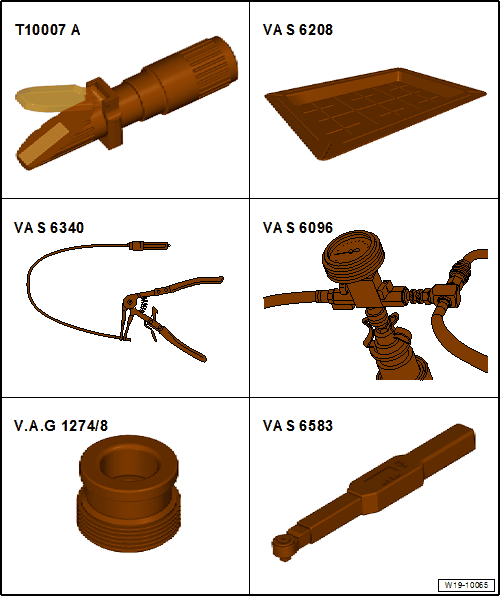

Special Tools And Workshop Equipment Required

Refractometer :T10007A
Shop Crane - Drip Tray :VAS6208
Hose Clip Pliers :VAS6340
Cooling System Charge Kit :VAS6096
Cooling System Tester - Adapter :VAG1274/8

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Refractometer :T10007A
Shop Crane - Drip Tray :VAS6208
Hose Clip Pliers :VAS6340
Cooling System Charge Kit :VAS6096
Cooling System Tester - Adapter :VAG1274/8
Electronic Torque Wrench 3-60Nm :VAS6583

Special Tools And Workshop Equipment Required

Counterhold - Multiple Use :T10172A with Counterhold - Kit - Adapter 2 :T10172/2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Thermostat Key :T10508

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Cooling System Tester :VAG1274B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Cooling System Tester - Adapter :VAG1274/9

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 1331 5-50Nm :VAG1331

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 1410 :VAG1410

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 1783 - 2-10Nm :VAG1783

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Shop Crane - Drip Tray :VAS6208

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hose Clip Pliers :VAS6362

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hose Clamps - Up To 25mm :3094

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Not illustrated
Intake Manifold Release Tool :T10527
Intake Manifold Release Tool - 1 :T10527/1
