Overview - Electric Coolant Pump

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

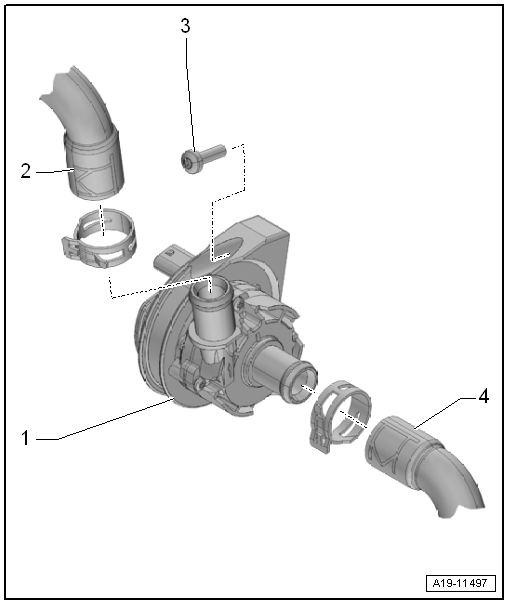

GWWA19-11497Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Charge Air Cooling Pump -V188-
  2. Coolant Hose
  3. Bolt
    • 8 Nm
  4. Coolant Hose
