Charge Air Cooling Pump -V188-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
-- Carefully open the cap -1- on the coolant expansion tank -2- in the direction of -arrow-.
CAUTION:
The cooling system is under pressure when the engine is warm. Risk of scalding due to hot steam and hot coolant.
Scalding the skin and other parts of the body is possible.
- Wear safety gloves.
- Wear protective eyewear.
- Reduce the pressure by covering the coolant expansion tank cap with a cloth and carefully opening it.
-- Remove the noise insulation. Refer to NOISE INSULATION .

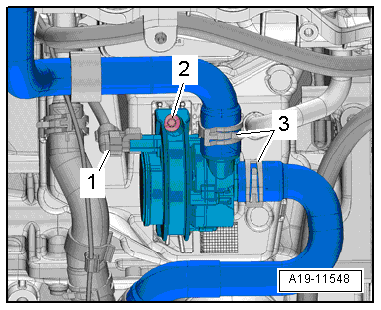

-- Disconnect the connector -1-.
-- Place the :VAS6208 underneath.
-- Clamp the coolant hoses on the Charge Air Cooling Pump -V188- with the :3094 .
-- Loosen the clamps -3- and remove the coolant hoses.
-- Remove the bolt -2- and remove the Charge Air Cooling Pump -V188-.
