Coolant Pump Toothed Belt Sprocket, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the coolant pump. Refer to COOLANT PUMP, REMOVING AND INSTALLING .

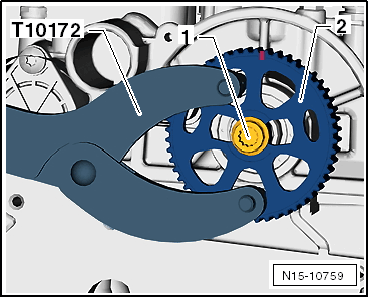

-- Loosen the bolt -1- by using the :T10172A  with the :T10172/2  .

GWWN15-10759Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt and the toothed belt sprocket -2-.
