Coolant Pump Toothed Belt Sprocket, Removing And Installing: Installing
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:
-- Installing the toothed belt sprocket:

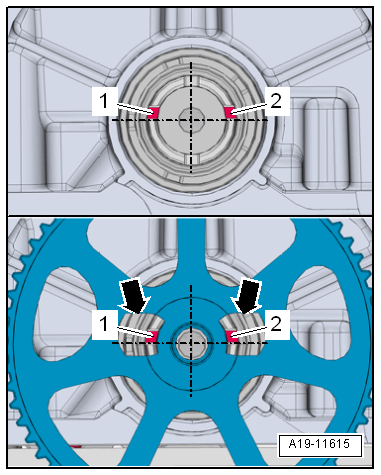

- The grooves -1 and 2- in the camshaft are positioned asymmetrically.
- The openings -arrows- in the toothed belt sprocket are likewise positioned asymmetrically.
-- Place the toothed belt sprocket on the camshaft so the asymmetrical grooves are exactly in the center of the openings.
-- Install the coolant pump. Refer to COOLANT PUMP, REMOVING AND INSTALLING .
