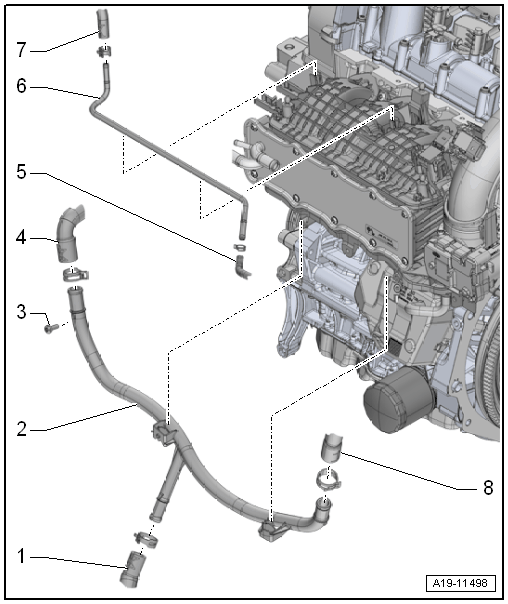

Overview - Coolant Pipes
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Coolant Hose
- Coolant Pipe
- For removal, remove the intake manifold. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .
- Clipped to the bottom of the intake manifold
- Bolt
- 8 Nm
- Coolant Hose
- Coolant Hose
- Coolant Line
- Clipped to the top of the intake manifold
- Coolant Hose
- Coolant Hose
