Coolant Pipes, Removing And Installing: Installing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

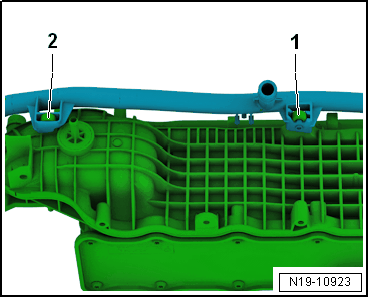

-- First push the coolant pipe onto the mounting -1- until it engages.

-- Then push the coolant pipe onto the mounting -2- until it engages.

-- Make sure that both mountings are engaged by pulling on the coolant pipe.

Further installation is performed in reverse order of removal, while noting the following:

Replace the seals and O-rings.
Secure all hose connections with standard production hose clamps.

-- Install the intake manifold. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .

-- Check the coolant level. Refer to COOLANT, DRAINING AND FILLING .
