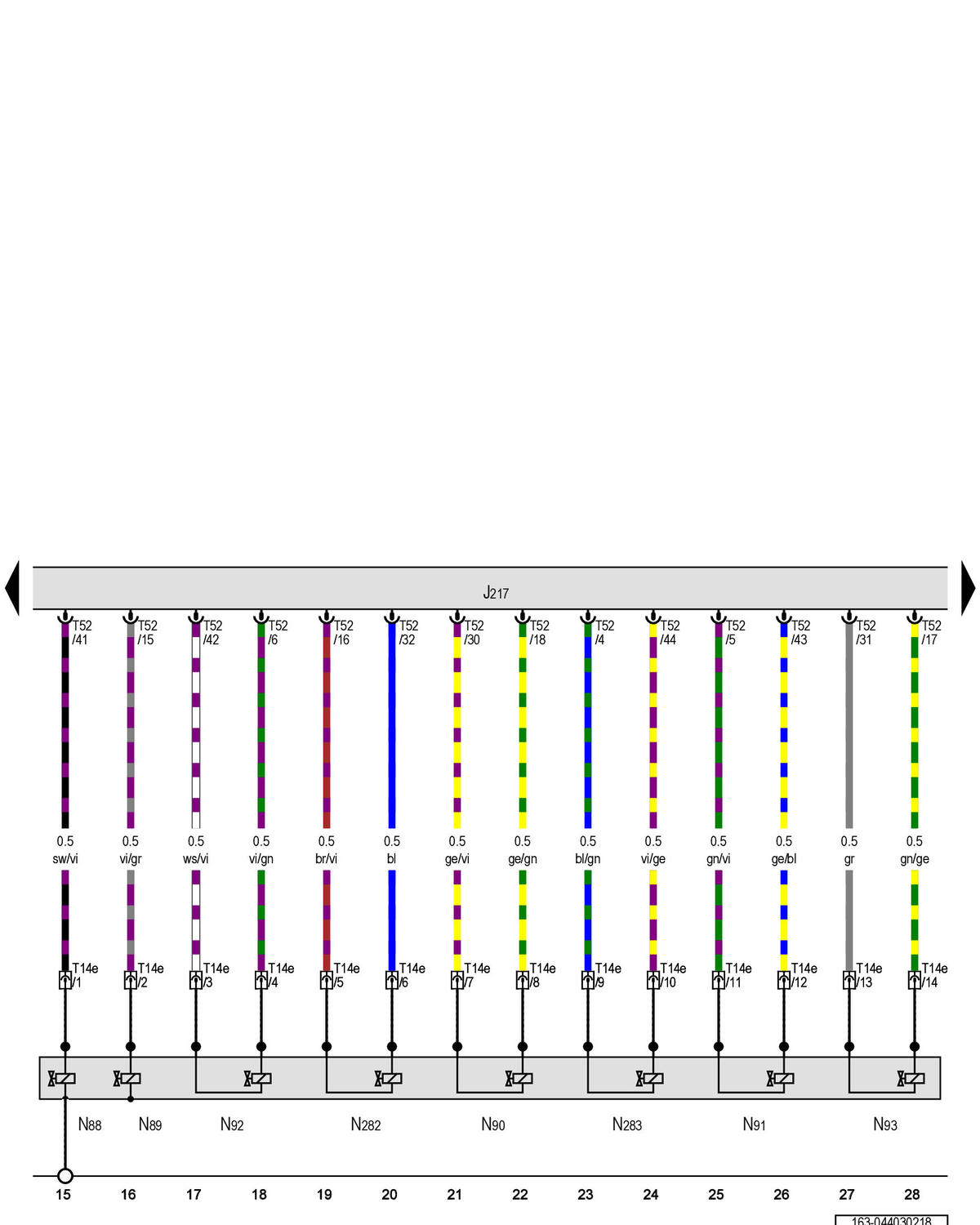

Transmission Control Module, Solenoid Valve 1, Solenoid Valve 2, Solenoid Valve 3, Solenoid Valve 4, Solenoid Valve 5, Solenoid Valve 6, Solenoid Valve 9, Solenoid Valve 10

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J217

Transmission Control Module

N88

Solenoid Valve 1

N89

Solenoid Valve 2

N90

Solenoid Valve 3

N91

Solenoid Valve 4

N92

Solenoid Valve 5

N93

Solenoid Valve 6

N282

Solenoid Valve 9

N283

Solenoid Valve 10

T14e

14-Pin Connector

T52

52-Pin Connector
