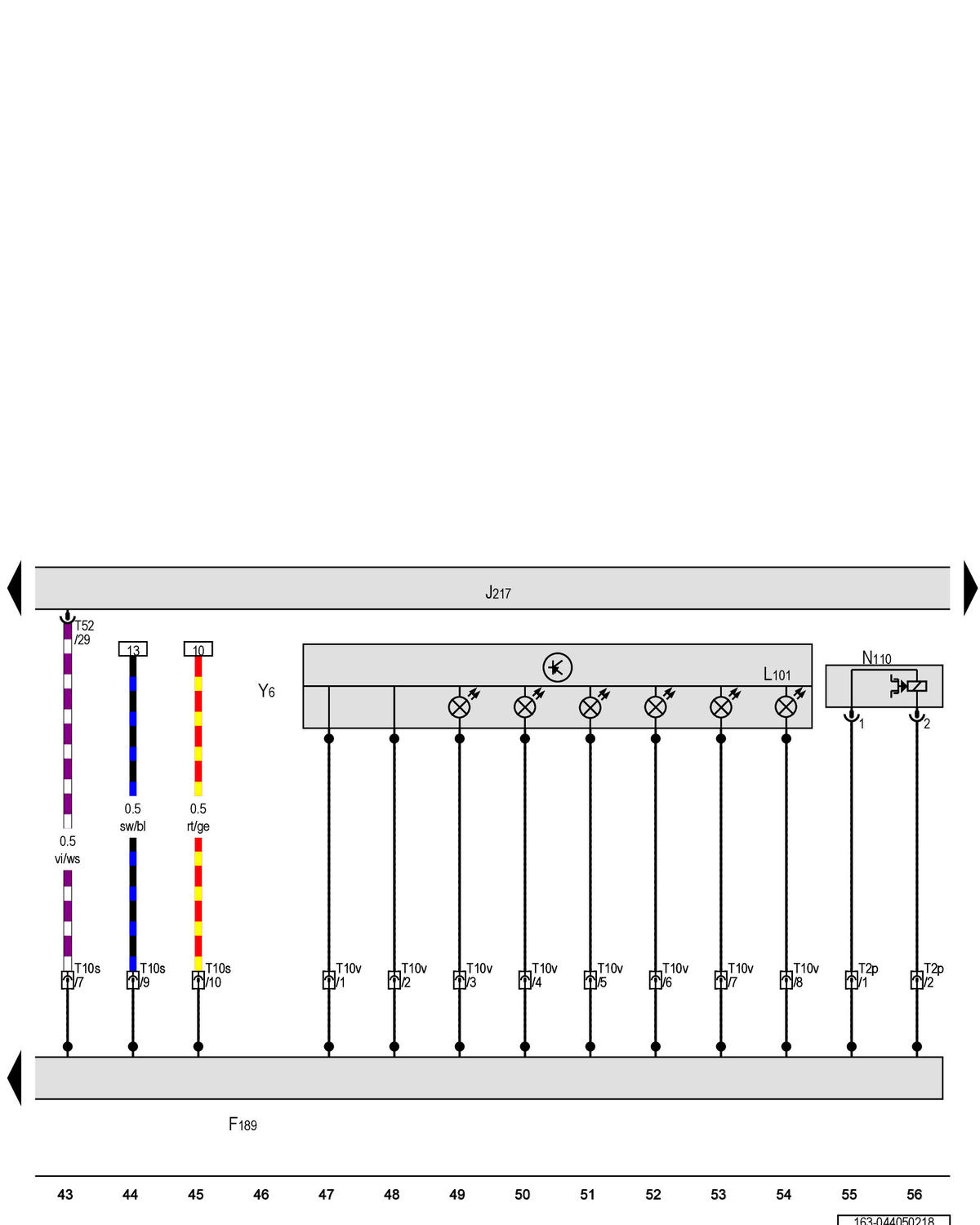

TIPTRONIC Switch, Transmission Control Module, Selector Lever Scale Illumination Bulb, Shift Lock Solenoid, Transmission Range Display

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

F189

Tiptronic Switch

J217

Transmission Control Module

L101

Selector Lever Scale Illumination Bulb

N110

Shift Lock Solenoid

T2p

2-Pin Connector

T10s

10-Pin Connector

T10v

10-Pin Connector

T52

52-Pin Connector

Y6

Transmission Range Display
