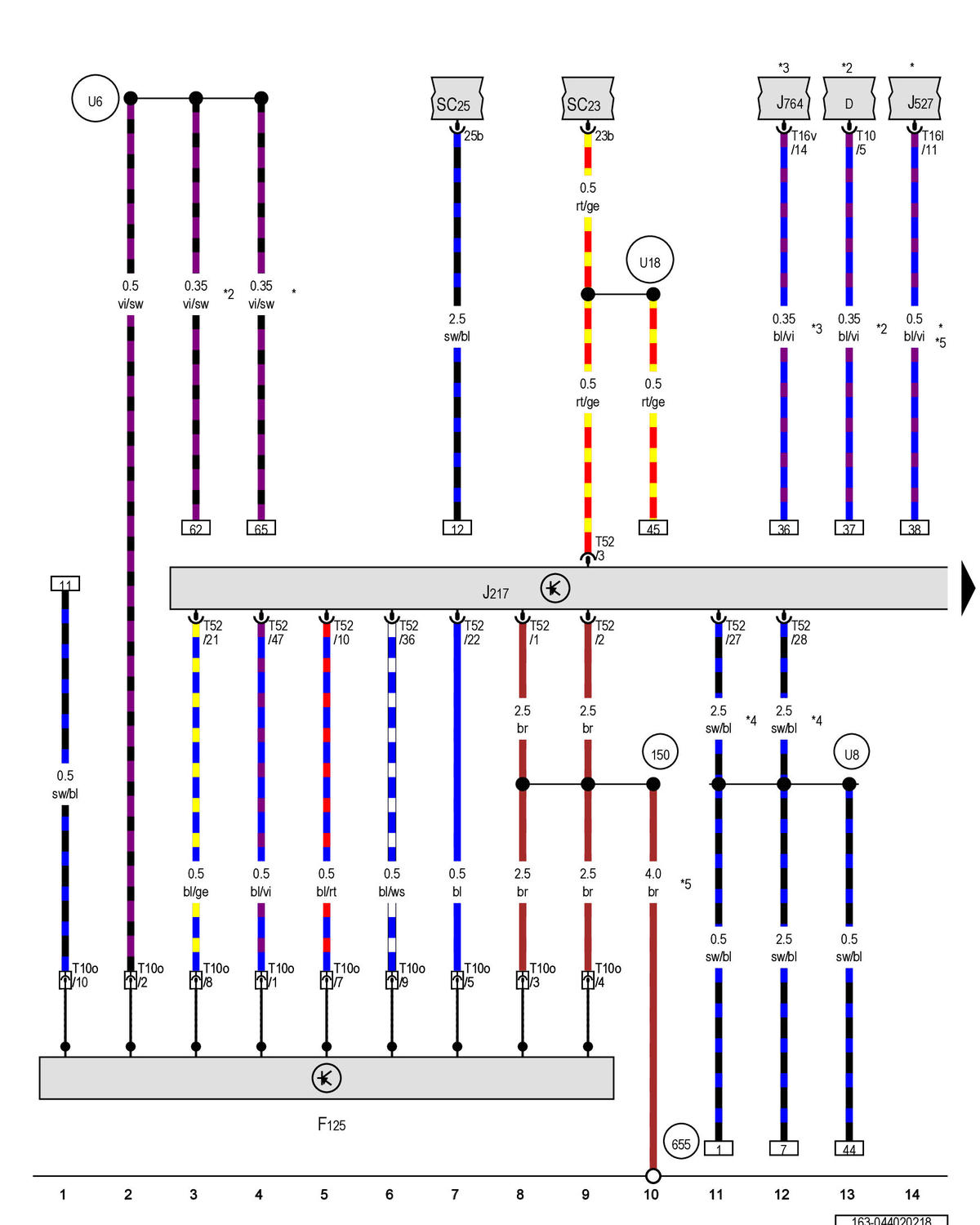

MULTIFUNCTION Transmission Range Switch, Transmission Control Module, Fuse 23 (On Fuse Panel C), Fuse 25 (On Fuse Panel C)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

D

Ignition/Starter Switch

F125

Multifunction Transmission Range Switch

J217

Transmission Control Module

J527

Steering Column Electronics Control Module

J764

Electronic Steering Column Lock Control Module

SC23

Fuse 23 (On Fuse Panel C)

SC25

Fuse 25 (On Fuse Panel C)

T10

10-Pin Connector

T10o

10-Pin Connector

T16l

16-Pin Connector

T16v

16-Pin Connector

T52

52-Pin Connector

Ground Connection 2 (in Automatic Transmission Wiring Harness)

Ground Connection on Left Headlamp

Connection 2 (in Automatic Transmission Wiring Harness)

Positive Connection (15a) (in Automatic Transmission Wiring Harness)

Positive Connection (30a) (in Automatic Transmission Wiring Harness)

*

For Vehicles with High Equipment (AW1)

*2

For Vehicles with Low Equipment (AW0)

*3

For Vehicles with Access/Start Authorization System

*4

The Color of the Wires Depends on Vehicle Equipment

*5

Diameter Depends on Equipment
