Drive Plate, Removing And Installing: Removing

-- Secure the :VW558  to the drive plate with the M8 x 45 hex bolt. To do this, insert two M10 hex nuts between flywheel lock adapter and drive plate.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

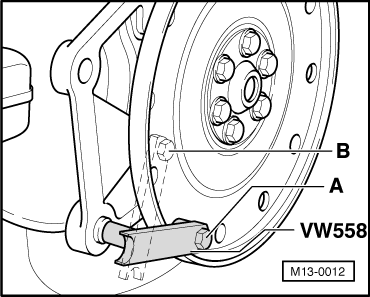

Installed location of flywheel retainer:

A - To loosen

B - To tighten

-- Remove the bolts from the drive plate.
