Drive Plate, Removing And Installing: Installing

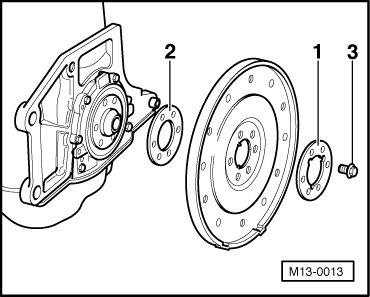

-- Set drive plate in place, using washer with notches -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the new bolts -3- and tighten to 30 Nm.

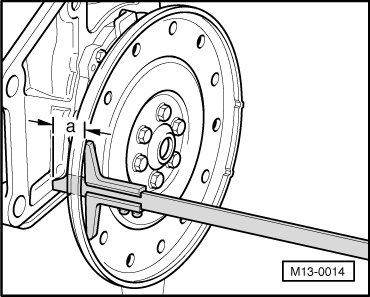

-- Measure the dimension -a- at 3 different outer holes in the drive plate (offset 120°), and then calculate the average.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Specified value for dimension a: 19.5 to 21.1 mm

NOTE:

This is measured through the hole in the drive plate to the machined surface of the cylinder block. Disengage the intermediate plate. Refer to Identifying Intermediate Plate Alignment Bushing .

If the specification is not obtained:

-- Remove the drive plate one more time and use the shim -2-. Tighten bolts -3- again to 30 Nm.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts on the drive plate.

Additional turn can occur in several stages.
