Noise Insulation And Foam Pieces, Fender And Fender End Plate
WARNING: This page is about a different car, the 2014 Volkswagen Jetta, 2013 Volkswagen Jetta, 2012 Volkswagen Jetta, and 2011 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

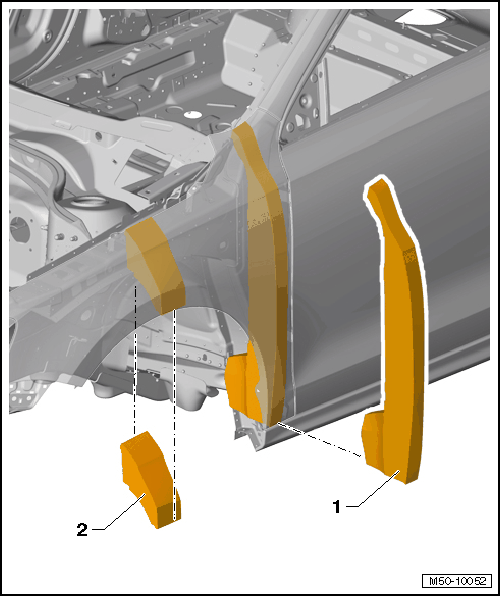

The graphic below shows the left side. The right side is identical.
There may be different noise insulation and foam pieces installed.
- Noise Insulation, Fender End Plate
- Installed in front of the fender end plate
- Not installed in all models
- Foam Piece
- Inserted between the fender and the wheel housing longitudinal member
