Overview - Cylinder Head
WARNING: This page is about a different car, the 2014 Volkswagen Jetta, 2013 Volkswagen Jetta, 2012 Volkswagen Jetta, and 2011 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Exploded View Of Cylinder Head Components -- Engine Codes AEG, AVH, AZG With Aluminum Plate Cylinder Head Gasket
- Sealing Plugs
- To Intake Tube
- -Item 6- Cylinder Head Cover
- Molded Hose
- To Intake Manifold
- -Item 16- Connection
- O-Ring
- No replacement part
- Plug
- 15 Nm
- No replacement part
- Cylinder Head Bolt
- Replace
- Sequence for loosening and tightening (refer to CYLINDER HEAD, REMOVING AND INSTALLING ), Cylinder head, removing and installing
- Connection
- Coolant hose connection diagram, refer to COOLANT HOSE CONNECTION DIAGRAM .
- Bolt
- 9 Nm
- O-Ring
- Replace
- Bolt
- 20 Nm
- Lifting Eye
- Cylinder Head Gasket
- Replace
- After replacing, replace entire amount of coolant.
- Bolt
- 15 Nm
- Bolt
- 20 Nm
- Rear Toothed Belt Guard
- Toothed Belt
- Mark direction of rotation before removing
- Check for wear
- Do not kink
- Removing and installing, refer to TOOTHED BELT, REMOVING AND INSTALLING .
- Cylinder Head
- Check for distortion, refer to Fig 2
- Resurfacing sealing surfaces, refer to Figure
- Removing and installing, refer to CYLINDER HEAD, REMOVING AND INSTALLING .
- After replacing, replace entire amount of coolant.
- Oil Separator
- Cylinder Head Cover Gasket
- Replace if damaged.
- Before mounting, coat the bearing cap/cylinder head transition areas with D 454 300 A2
- Cylinder Head Cover
- With wiring guides
- Bolt
- 10 Nm
- Seal
Special tools and workshop equipment required

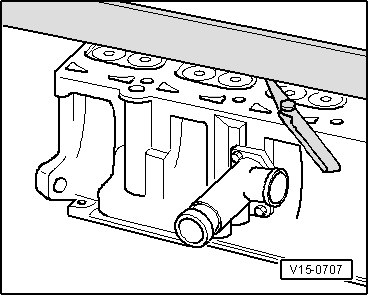

- Straight edge
- Feeler Gauge
- Permissible distortion: 0.1 mm
Minimum distance of the linear surface: 100 mm
