Overview - Engine Pre-Heater

WARNING: This page is about a different car, the 2014 Volkswagen Jetta, 2013 Volkswagen Jetta, 2012 Volkswagen Jetta, and 2011 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Not all vehicles have a pre-heater.

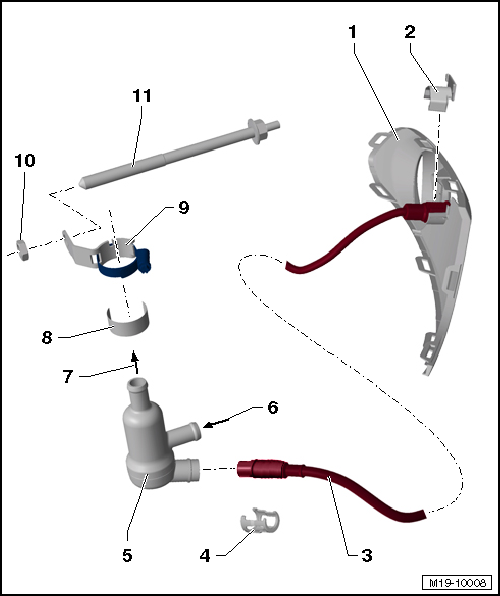

Fig 1: Identifying Engine Pre-Heater Overview
GWWM19-10008Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Left Cover
    • Inside the front bumper cover
  2. Bracket
  3. Connecting Cable
    • Make sure it is attached securely
  4. Locking mechanism
  5. Pre-Heater
  6. From Oil Cooler
    • -Item  19-
  7. To Coolant Pipe
    • -Item  9-
  8. Adhesive Foil
    • Attached on the pre-heater near screw-type clamp to prevent corrosion on the contacts
  9. Bracket with Screw-Type Clamp
    • Tighten the screw-type clamp to 3 Nm.
  10. Bolt
    • 40 Nm
  11. Starter Bolt
