Engine, Supporting In Installed Position

WARNING: This page is about a different car, the 2014 Volkswagen Jetta, 2013 Volkswagen Jetta, 2012 Volkswagen Jetta, and 2011 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Procedure

CAUTION:

When doing any repair work, especially in the engine compartment, pay attention to the following due to clearance issues:

  • Route lines of all types (for example for fuel, hydraulic, Evaporative Emission (EVAP) canister system, coolant and refrigerant, brake fluid, vacuum) and electrical wiring so that the original path is followed.
  • To prevent damage to the lines, make sure there is sufficient clearance to all moving or hot components.
CAUTION:

Danger of causing damage to the decoupling element:

  • Do not bend the decoupling element more than 10°.
  • Do not stretch the decoupling element.
  • Do not damage the wire mesh on the decoupling element.

-- Remove the exhaust system bracket from the subframe -arrows-.

Fig 1: Identifying Suspended Mount Bolts
GWWM40-10010Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1-.

Fig 2: Installing Pendulum Support
GWWM10-10034Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2 and 3-.

-- Remove the pendulum support.

-- Remove the plenum chamber cover, refer to Bulkhead Materials .

-- Remove the air filter housing, refer to OVERVIEW - AIR FILTER .

-- Remove the battery and the battery tray, refer to BATTERY and BATTERY TRAY .

-- Remove the bolts -arrows- from the left and right sides of the lock carrier bracket.

Fig 3: Identifying Left And Right Lock Carrier Bracket Bolts
GWWN10-10645Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lower mounts on the Engine Support Bridge - Engine Support 2810-222A/28 and replace with the Engine Support Bridge - Engine Support 28-210-222A/28-2.

Fig 4: Identifying Engine Support Bridge Adapter
GWWN10-10633Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- for securing the engine support bridge on the lock carrier from the Engine Support Bridge - Engine Support 28-210-222A/28-2.

-- Use the bolts from the Engine Support Bridge - Engine Support 28-210-222A/28-2 for attaching the Engine Support Bridge - Engine Support 2810-222A/28. Do not use the bolts for the bracket.

Fig 5: Identifying Engine Support Adapter And Adapter 10 - 222 A /28
GWWN10-10644Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Bolt tightening specification -arrows- : 8 Nm

CAUTION:

A second technician is needed when positioning the Engine Support Bridge10-222A on the vehicle to keep the Engine Support Bridge10-222A from tipping.

Mount the engine support bridge on the engine/transmission sub-assembly as follows:

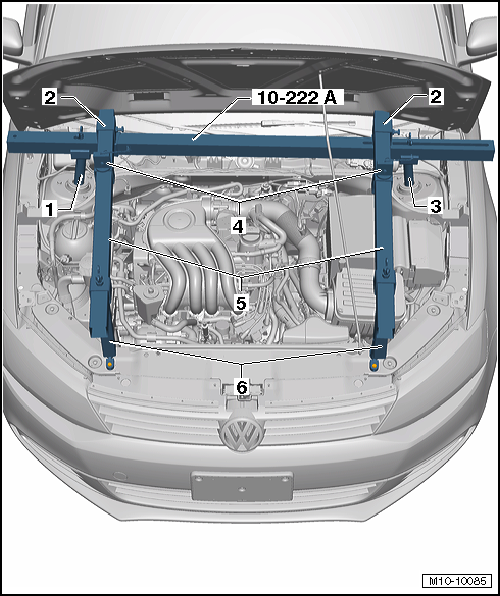

Fig 6: Identifying Engine Support Bridge
GWWM10-10085Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Engine Support Bridge - Engine Support 31 Adapter 31-210-222A/31-2
  2. Engine Support - Basic Set - Moveable Joint T40091/3
  3. Engine Support Bridge - Engine Support 31 Adapter 31-110-222A/31-1
  4. Movable Joint T40093/4
  5. Engine Support - Basic Set - Square Pipe T40091/1
  6. Engine Support Bridge - Engine Support 2810-222A/28 with Engine Support Bridge - Engine Support 28-210-222A/28-2

-- First slide the Movable Joints -2- onto the Square Pipe on the Engine Support Bridge 10-222A.

-- Mount the Engine Support Bridge 10-222A on the suspension strut domes and have a second technician hold it to prevent it from falling over.

-- Slide the Square Pipe T40091/1 -5- on the left and right sides through the Engine Support Bridge - Engine Support 2810-222A /28 -6- from the front and position the Moveable Joints T40093/4 -4- on each side.

-- Slide the Rail with Holes T40091/2 -8- with the Mounts T40093/5 -7- into the Moveable Joints T40093/4 -4-.

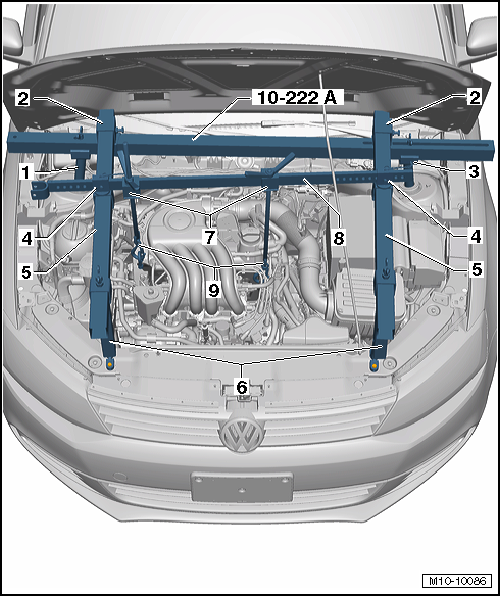

Fig 7: Identifying Engine Support Adapter
GWWM10-10086Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Engine Support Bridge - Engine Support 31 Adapter 31-210-222A/31-2
  2. Engine Support - Basic Set - Moveable Joint T40091/3
  3. Engine Support Bridge - Engine Support 31 Adapter 31-110-222A/31-1
  4. Movable Joint T40093/4
  5. Engine Support - Basic Set - Square Pipe T40091/1
  6. Engine Support Bridge - Engine Support 2810-222A/28 with Engine Support Bridge - Engine Support 28-210-222A/28-2
  7. Mount T40093/5
  8. Rail with Holes T40091/2
  9. Engine Support Bridge - Spindle 10-222A/11

-- Insert the securing pin into the Rail with Holes T40091/2 -8- and secure it with cotter pins.

-- Tighten all threaded connections on the Engine Support Bridge hand-tight. While doing so, adjust the height of the Engine Support Bridge parallel over the Engine Support Bridge - Engine Support 2810-222A/28.

-- Gently pretension the engine/transmission assembly via the Engine Support Bridge - Spindles 10-222A/11 -9-, but do not lift.
