Engine Cover

WARNING: This page is about a different car, the 2014 Volkswagen Jetta, 2013 Volkswagen Jetta, 2012 Volkswagen Jetta, and 2011 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Pull the corners of the engine cover up in the -direction of arrows- and off of the ball studs.

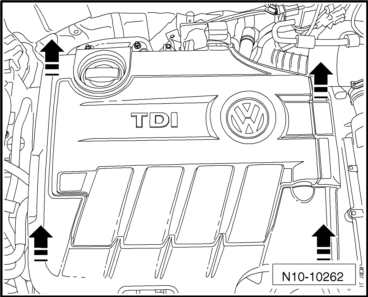

Fig 1: Identifying Direction To Pull Engine Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

CAUTION:

Check the position of the four mounting elements (ball sockets) before installing the engine cover. Bring them back into the correct position if necessary. Otherwise the engine cover will be damaged.

-- Press the ball sockets on the engine cover into the correct installed position, if necessary.

Fig 2: Identifying Ball Sockets Correct Installed Position

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the engine cover on the ball studs and press down the corners onto the ball studs.
