Rear Lid Adjustment Buffer, Adjusting

NOTE:

The following describes adjusting the right adjusting buffer. Adjusting the left adjusting buffer is identical.

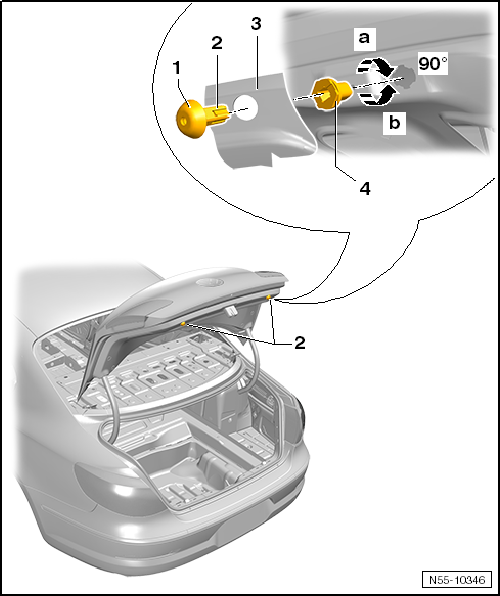

Fig 1: Rear Lid Adjustment Buffer, Adjusting

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the clamping screw -2- until it is visible in the rubber buffer.

-- Remove the notched slider -1- form the adjusting buffer.

-- Set notched slider to dimension -a- = 12.5 mm.

Fig 2: Identifying Notched Slider Adjustment Dimension

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Close the rear lid in the initial locking position using light pressure over the center.

-- Open the rear lid again.

Fig 3: Clamping Screw Screwed In For Adjustment Buffer To A Depth Of Dimension

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the clamping screw -1- for the adjustment buffer to a depth of -a- = 20 mm.

-- Check the adjustment.
