Hood Release Lever And Bracket Overview

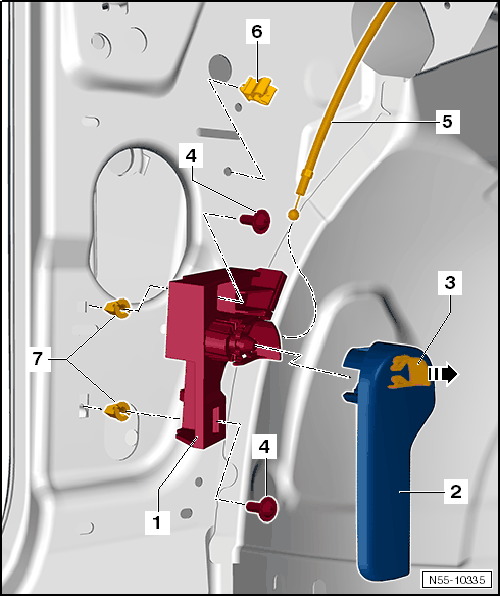

Fig 1: Identifying Hood Release Lever Remove/Install Components
GWWN55-10335Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bracket
  2. Hood Release Lever
  3. Retaining Clip
  4. Bolt
    • Tightening specification: 2 Nm
    • Quantity: 2
  5. Release Cable
  6. Retaining Clip
  7. Expanding Nut
    • Quantity: 2
