Rear Seat Belt Latches: Removing

Left Seat Belt Latch

-- Fold the left bench seat backrest forward until the seat cushion moves forward.

-- Hold the seat cushion in this position and fold back the backrest.

-- Remove the bolt -2- (40 Nm) and remove the left seat belt latch -1- from the seat frame.

Center Seat Belt Latch

-- Remove the left bench seat. Refer to REAR BENCH SEAT

-- Remove the bench seat backrest adjustment trim. Refer to REAR BENCH SEAT BACKREST ADJUSTMENT TRIM

-- Remove the bolt -3- (40 Nm) and remove the center seat belt latch -4- from the seat frame.

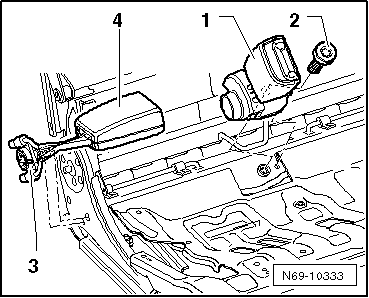

Fig 1: Identifying Left Seat Belt Latch -1- And Bolt -2- And Center Seat Belt Latch -4- And Bolt -3-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Seat Belt Latch

-- Fold the right bench seat backrest forward until the seat cushion moves forward.

-- Hold the seat cushion in this position and fold back the backrest.

-- Remove the bolt -1- (40 Nm) and remove the right seat belt latch -2- from the seat frame.

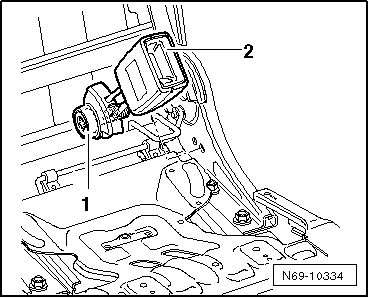

Fig 2: Identifying Bolt -1- And Right Seat Belt Latch -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
