Front Seat Belts From My 2012: Installing

-- Install in reverse order of removal.

WARNING:
  • Do not remove the protective cover on the belt anchor -2- when installing.
  • When installing the belt anchor -2-, make sure its protective cover is not damaged by the two bolts -1-.
  • The 2 bolts -1- must be flush with the belt anchor -2- after installing.
  • Do not twist the belt webbing when installing!

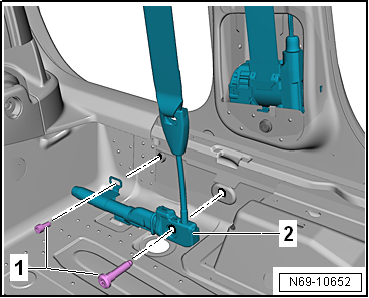

Fig 1: Identifying Screws -1- And Belt Anchor -2-
GWWN69-10652Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the battery. Refer to [For transmission(s) 0A6, 09M] Removal and Installation
