Front Seat Belt Latches: Removing

NOTE:

The following describes removing and installing the seat belt latch on the left seat. Removing and installing the right seat belt latch is identical.

-- Remove the front seat. Refer to FRONT SEAT

-- Cut the mesh hose cable tie and pull the harness connector seat belt latch through it.

-- Remove bolt -1- (40 Nm).

-- Remove the seat belt latch -2- from the mount in the seat frame -3-.

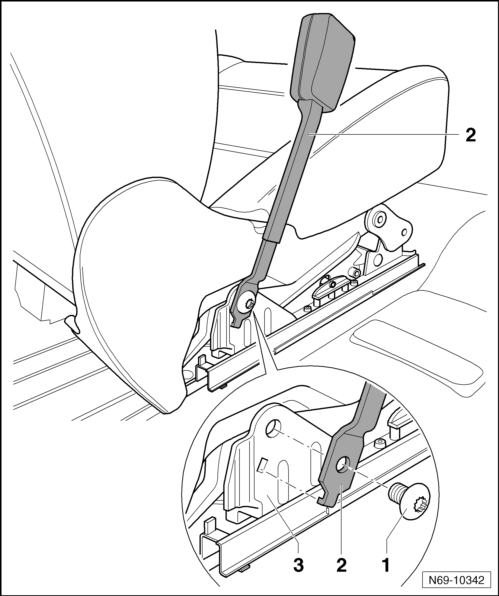

Fig 1: Identifying Bolt -1-, Seat Belt Latch -2- And Mount In Seat Frame -3-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
