Front Seat Belt Height Adjuster: Removing

NOTE:

Removing and installing on the left side of the vehicle is described here. Removing and installing on the right side is identical.

-- Remove the B-pillar upper trim. Refer to B-PILLAR UPPER TRIM, LOOSENING FROM MOUNTS AND SECURING

NOTE:

It is not necessary to remove the belt anchor from the front seat belt.

-- Remove bolt -1- (40 Nm) and remove belt relay -2- from belt height adjuster.

-- Remove bolt -3- (20 Nm) and separate belt height adjuster -4- from mounting in carrier plate.

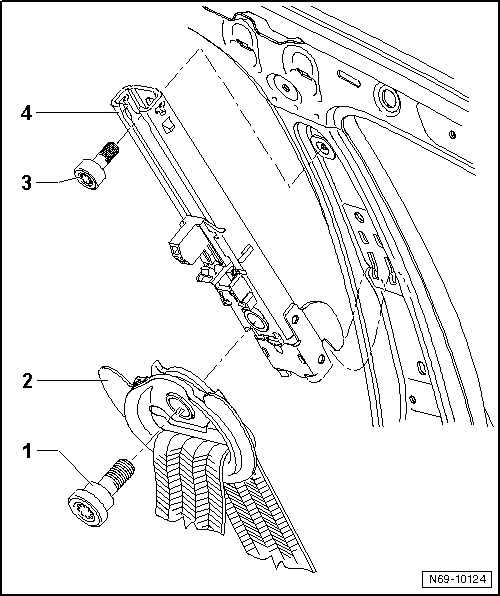

Fig 1: Identifying Bolt -1- To Belt Relay -2- And Bolt -3- To Belt Height Adjuster -4-
GWWN69-10124Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
