Driver Side Airbag Crash Sensor G179: Installing

-- Connect connector -4- to Front Passenger Side Airbag Crash Sensor -G179- -3-.

-- Secure Front Passenger Side Airbag Crash Sensor -G179- with pop rivet -2- to subframe using Pop Rivet Pliers VAS 5072.

-- Secure Front Passenger Side Airbag Crash Sensor -G179- with pop rivet -1- to subframe as described.

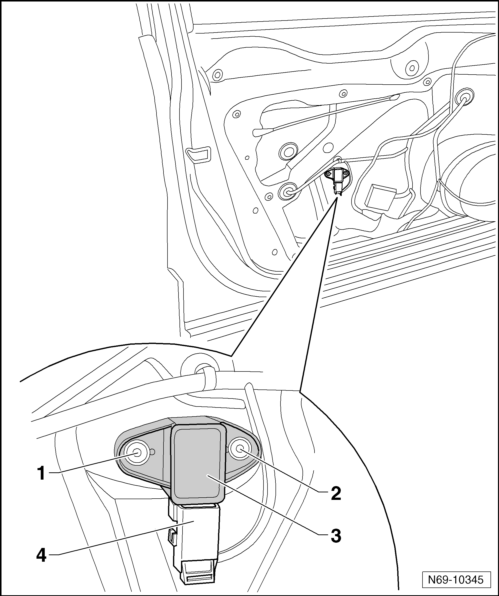

Fig 1: Identifying Pop Rivet -1 And 2-, Driver's Side Airbag Crash Sensor -3- Connector And Connector -4-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install in reverse order of removal.

-- Switch on ignition.

-- Connect the battery. Refer to [For transmission(s) 0A6, 09M] Removal and Installation
