Rear Center 3-Point Seat Belt Assembly Overview

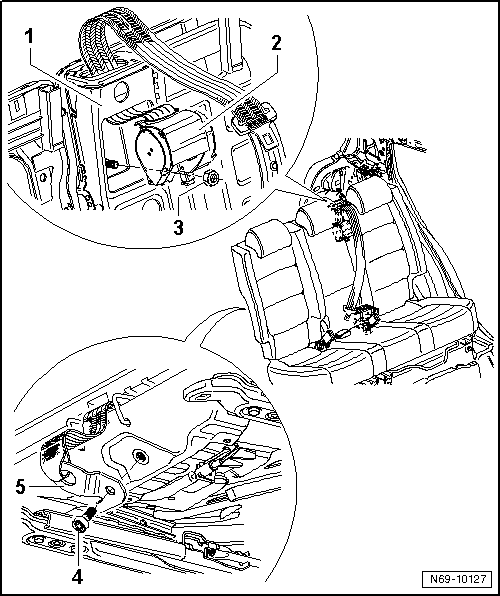

Fig 1: Identifying Rear Center 3-Point Seat Belt Assembly
GWWN69-10127Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Console
  2. Automatic Belt Retractor
  3. Hex Nut
    • 40 Nm
  4. Bolt
    • 40 Nm
  5. Belt Anchor
