Left/Right Front Turn Signal Bulb -M5- / -M7-

NOTE:

The figure depicts removal and installation of left turn signal.

Removing:

-- Remove front turn signal, refer to FRONT TURN SIGNALS .

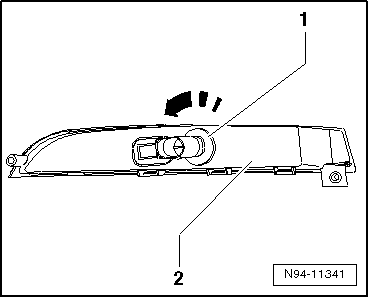

-- Rotate lamp socket -1- in direction of -arrow- and remove it from turn signal housing -2-.

Fig 1: Lamp Socket, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

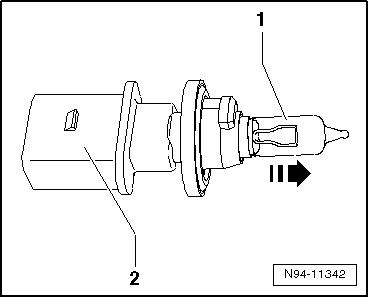

-- Remove the turn signal bulb -1- in the direction of the -arrow- from the bulb socket -2-.

Fig 2: Lamp Bulb, Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Turn signal bulb -- : 12V 21W

Installing:

Install in reverse order of removal. Note the following:

NOTE:

Do not touch the glass of the light bulb, when installing. Fingerprints will leave traces of grease on the glass which will evaporate and cloud the glass when the lamp is switched on.
