Overview Through 10/2009

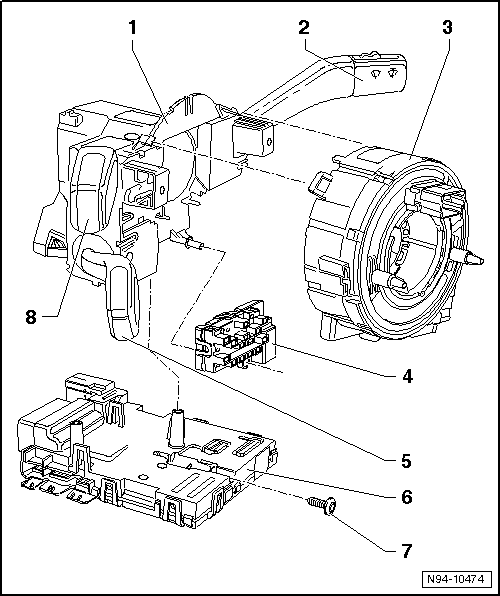

Fig 1: Steering Column Switch - Assembly Overview
GWWN94-10474Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. 1 -

    Steering Column Combination Switch -E595-

    • Bolts securing the steering column combination switch to the steering column, 10 Nm
    • The individual switches of Steering Column Combination Switch -E595- are combined into one unit and cannot be disassembled further.
    • Can be checked with the Steering Column Electronics Control Module -J527- output diagnostic test mode.
  2. 2 -

    Windshield Wiper Switch

  3. 3 -

    Airbag Spiral Spring/Return Spring with Slip Ring -F138-

  4. 4 -

    Segment Sensor for Steering Angle Sensor

    Removing and installing, refer to Steering Angle Sensor -G85- THROUGH 10/2009

  5. 5 -

    Cruise Control Switch -E45-

  6. 6 -

    Steering Column Electronics Control Module -J527-

  7. 7 -

    Bolt (T7)

  8. 8 -

    Turn Signal Switch -E2-
