Overview - Rear Lid Tail Lamps, Through 01/2012

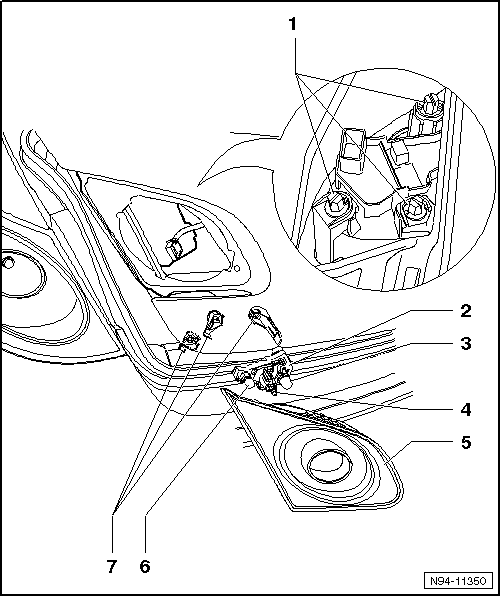

Fig 1: Rear Lid Tail Lamps Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 -
Nuts
- 3 Nm
2 -
Bulb Holder
- Removing and installing, refer to Removing and installing the bulb holder: .
3 -
Rear Fog Lamp Bulb
- Replacing, refer to Removing and Installing the Fog Lamp Bulb: .
- 12 V, W21W plug-in bulb
4 -
Back-Up Lamp Bulb
- Replacing, refer to LEFT/RIGHT BRAKE/TAIL LAMP BULB -M21- / -M22- .
- 12 V, H6W bayonet bulb
5 -
Tail Lamp Assembly Inside the Rear Lid
- Removing and installing, refer to REAR LID TAIL LAMPS -MX5- / -MX6-, THROUGH 01/2012 or REAR LID TAIL LAMPS -MX5- / -MX6-, FROM 01/2012 .
6 -
Tail Lamp Bulb
- Replacing, refer to Removing and Installing the Tail Lamp Bulb: .
- 12 V, W16W plug-in bulb
7 -
Tensioning Brackets
