Overview - Rear Lid Tail Lamps, From 01/2012

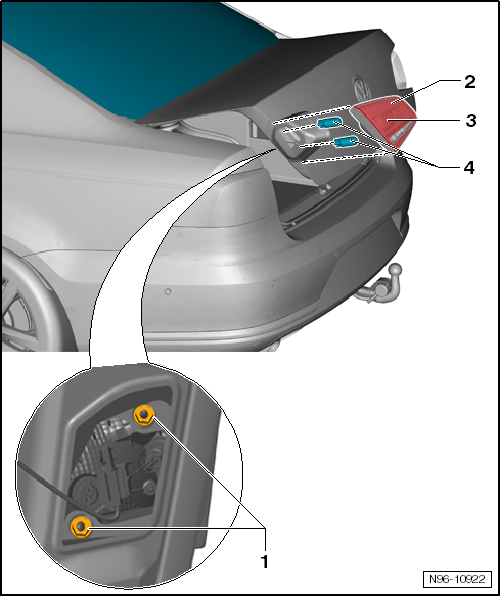

Fig 1: Rear Lid Tail Lamps Overview
GWWN96-10922Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. 1 -

    Nuts

    • 3 Nm
  2. 2 -

    Tail Lamp Housing

  3. 3 -

    Left Rear Fog Lamp Bulb -L46- or Right Rear Fog Lamp Bulb -L47-

    • Installed only on the driver side depending on the vehicle equipment.
    • Part of the rear lid tail lamp assembly
    • LED, cannot be removed
  4. 4 -

    Left Tail Lamp Bulb 2 -M49- and Right Tail Lamp Bulb 2 -M50-

    • 12V, W5W, Quantity 2
