Halogen Headlamps From 01/2012
NOTE:
Before working on headlamps, always switch them off and turn the key to the 0 position (ignition off).
Familiarity with the function and operation of the lighting system is needed if there are customer concerns.
Additional information:
Refer to the Owner's Manual.
Self-Study Program, refer to => 488The Passat 2011.
Diagnostic Trouble Code (DTC) Recognition and Display:
Vehicle electrical system is equipped with On Board Diagnostics (OBD) which assists Fault Finding the headlamps.
The "Guided Fault Finding" function is to be used for troubleshooting of one of the systems described as in "Vehicle Diagnosis, Testing and Information System", refer to VEHICLE DIAGNOSIS, TESTING AND INFORMATION SYSTEMS .

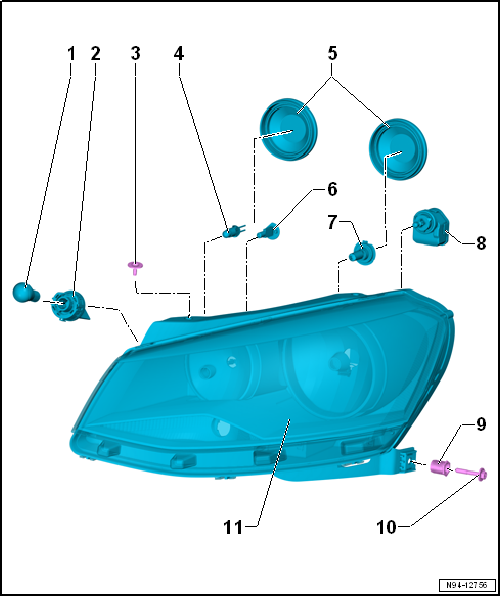

- Left Front Turn Signal Bulb -M5- and Right Front Turn Signal Bulb -M7-
- Removing and installing, refer to LEFT/RIGHT FRONT TURN SIGNAL BULBS -M5- / -M7-, HALOGEN HEADLAMP FROM 01/2012
- Bulb Socket
- For the front turn signal lamp
- Upper Screw
- 2 Nm
- Left Position Lamp Bulb -M1- or Right Position Lamp Bulb -M3-
- Glass base bulb 12V, W5W
- Removing and installing, refer to LEFT/RIGHT POSITION LAMP BULB -M1- / -M3-, FROM 01/2012
- Caps
- Left High Beam Headlamp -M30- and Right High Beam Headlamp -M32-
- H7 12V, 55W Bulb
- Removing and installing, refer to HIGH BEAM HEADLAMP BULB -M30- / -M32-, FROM 01/2012
- Left Low Beam Headlamp Bulb -M29- or Right Low Beam Headlamp Bulb -M31-
- H7 12V, 55W Bulb
- Removing and installing, refer to LEFT AND RIGHT LOW BEAM HEADLAMP BULB -M29- / - M31-, FROM 01/2012
- Left Headlamp Beam Adjustment Motor -V48- or Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing, refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, HALOGEN HEADLAMPS FROM 01/2012
- Adjusting Bushings
- Headlamp Installed Position, Correcting
- Screws
- 6 Nm
- Headlamps
- Removing and installing.
- Headlamp Installed Position, Correcting
- Headlamp Mounting Tabs, Servicing
- Headlamps, Retrofitting for Left or Right Hand Drive Traffic
