Overview - Fog Lamps

Diagnostic Trouble Code (DTC) Recognition and Display:

Vehicle Electrical System Control Module -J519- is equipped with On Board Diagnostics (OBD) which assists in troubleshooting.

The "Guided Fault Finding" function is to be used for troubleshooting of one of the systems described as in "Vehicle Diagnosis, Testing and Information System", refer to VEHICLE DIAGNOSIS, TESTING AND INFORMATION SYSTEMS .

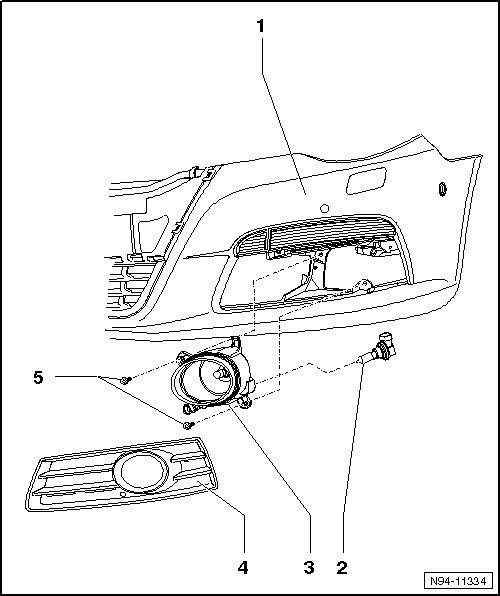

Fig 1: Fog Lamps Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. 1 -

   Front Bumper

2. 2 -

   Left Front Fog Lamp Bulb -L22- or Right Front Fog Lamp Bulb -L23-

   • H8 12 V, 35W bulb
   • Removing and installing, refer to LEFT/RIGHT FRONT FOG LAMP BULB -L22- / -L23- .
   • Checking, refer to FOG LAMPS, CHECKING .
3. 3 -

   Fog Lamp Housing

   • Removing and installing, refer to FOG LAMP .
4. 4 -

   Cover

5. 5 -

   Screws

   • 1.5 Nm
