Overview - Body Tail Lamps, From 01/2012

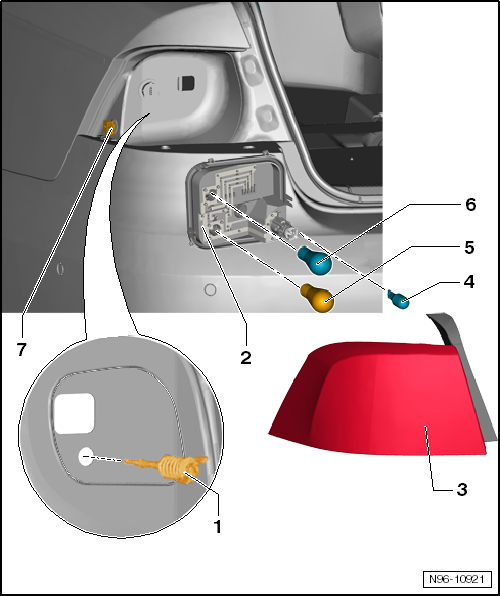

Fig 1: Side Panel Tail Lamps Overview
GWWN96-10921Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. 1 -

    Tail Lamp Housing Bolt

    • 2 Nm
  2. 2 -

    Bulb Holder

  3. 3 -

    Tail Lamps In Side Panel

  4. 4 -

    Left Back-Up Lamp Bulb -M16- and Right Back-Up Lamp Bulb -M17-

    • 12V, W16W
  5. 5 -

    Left Rear Turn Signal Bulb -M6- or Right Rear Turn Signal Bulb -M8-

    • 12V, PY21W
  6. 6 -

    Brake and tail lamp bulb

    • Left Brake/Tail Lamp Bulb -M21- or Right Brake/Tail Lamp Bulb -M22-
    • 12V, P21W
  7. 7 -

    Guide on the Side Panel
