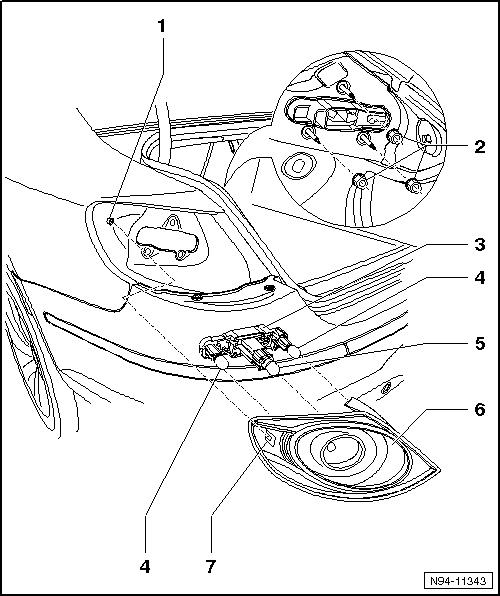

Overview - Body Tail Lamps Through 01/2012
- 1 -
Y-Piece In Side Panel
- 2 -
Nuts
- 3 Nm
- 3 -
Bulb Holder
- Removing and installing, refer to Removing and installing the bulb holder: .
- 4 -
Tail Lamp/Brake Light Bulbs
- Replacing, refer to LEFT/RIGHT BRAKE/TAIL LAMP BULB -M21- / -M22- .
- 12 V, W16W plug-in bulb
- 5 -
Turn Signal Bulb
- Replacing, refer to FRONT TURN SIGNALS .
- 12 V, 10W bayonet bulb
- 6 -
Tail Lamps In Side Panel
- Removing and installing, refer to LEFT/RIGHT TAIL LAMP -MX3- / -MX4-, THROUGH 01/2012 or LEFT/RIGHT TAIL LAMP -MX3- / -MX4-,, FROM 01/2012
- Checking, refer to REAR LID TAIL LAMPS -MX5- / -MX6-, THROUGH 01/2012 .
- 7 -
Nut in Tail Lamp Housing
- Must be placed on the y-piece in the side panel when installing -item 1- :1 -. Follow the installation instructions.
