Striker Pin, Adjusting

-- Loosen the bolts -2-, but do not remove them.

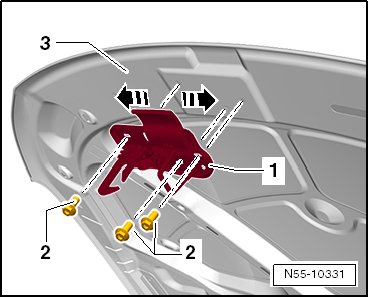

Fig 1: Striker Pin, Adjusting

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The catch -1- can now be adjusted to the left and right -arrows- in the elongated holes.

-- Tighten the bolts -2- to the tightening specification: 10 Nm.
