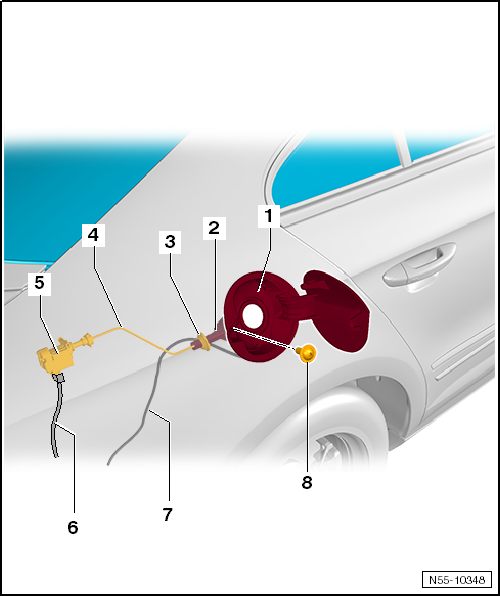

Fuel Filler Door Unit
NOTE:
If tank flap does not open, it can be opened by hand via the actuator -5-.
The adjustment element -5- is found behind the side luggage compartment side trim panel, refer to Removal and Installation .
- Fuel Filler Door Unit
- Removing and installing, refer to FUEL FILLER DOOR UNIT
- Assembly Piece
- Seal
- Release Rod
- Actuator
- Removing and installing, refer to ACTUATOR
- Connector
- Water Drain Hose
- Bolt
- Tightening specification: 1.5 Nm
