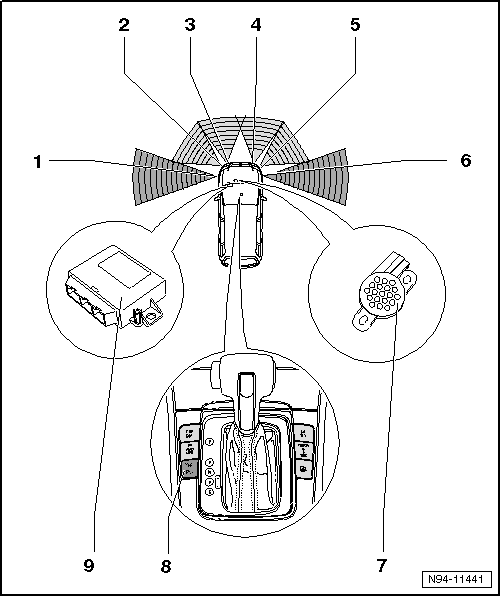

Overview - Parallel Parking Assistance
- Left Front Parallel Parking Assistance Sensor -G568-
- In the front bumper cover
- Removing and installing, refer to FRONT PARKING AID SENSOR IN RADIATOR GRILL or FRONT PARKING AID SENSOR IN BUMPER COVER .
- Replacing, refer to PARKING AID SENSOR .
- Parallel parking assistance sensor bracket, repairing, refer to PARALLEL PARKING ASSISTANCE SENSOR BRACKET IN FRONT BUMPER COVER, REPAIRING .
- Left Front Parking Aid Sensor -G255-
- In the front bumper cover
- Removing and installing, refer to PARKING AID COMPONENTS .
- Front parking aid sensor bracket, repairing, refer to PARKING AID COMPONENTS .
- Left Front Center Parking Aid Sensor -G254-
- in the radiator grille
- Removing and installing, refer to PARKING AID COMPONENTS .
- Front parking aid sensor bracket, repairing, refer to PARKING AID COMPONENTS .
- Right Front Center Parking Aid Sensor -G253-
- in the radiator grille
- Removing and installing, refer to PARKING AID COMPONENTS .
- Front parking aid sensor bracket, repairing, refer to PARKING AID COMPONENTS .
- Right Front Parking Aid Sensor -G252-
- In the front bumper cover
- Removing and installing, refer to PARKING AID COMPONENTS .
- Front parking aid sensor bracket, repairing, refer to PARKING AID COMPONENTS .
- Right Front Parallel Parking Assistance Sensor -G569-
- In the front bumper cover
- Removing and installing, refer to FRONT PARKING AID SENSOR IN RADIATOR GRILL or FRONT PARKING AID SENSOR IN BUMPER COVER .
- Replacing, refer to PARKING AID SENSOR .
- Parallel parking assistance sensor bracket, repairing, refer to PARALLEL PARKING ASSISTANCE SENSOR BRACKET IN FRONT BUMPER COVER, REPAIRING .
- Front Parking Aid Warning Buzzer -H22-
- In driver footwell, on the instrument panel relay carrier
- Removing and installing, refer to Front Parking Aid Warning Buzzer -H22- .
- Volume, adjusting, refer to Front Parking Aid Warning Buzzer -H22- VOLUME, ADJUSTING .
- Adapting the tone, refer to Front Parking Aid Warning Buzzer -H22- TONE, ADJUSTING .
- Parking Aid Button -E266-
- In the center console storage compartment near the selector lever
- Removing and installing, refer to CENTER CONSOLE SWITCH MODULE 1 & 2 -EX23- / -EX30- or CENTER CONSOLE SWITCH MODULE 1 & 2 -EX23- / -EX30- .
- Parallel Parking Assistance Control Module -J791-
- in the left footwell, above the relay carrier
- Removing and installing, refer to Parallel Parking Assistance Control Module -J791- .
- Coding, refer to Parallel Parking Assistance Control Module -J791-, CODING .
