71/2 J X 18
Pay attention to wheels/tires assignments for respective engine versions which are listed in the overview table.
| Explanatory notes of indications on disc wheels: | Refer to DISC WHEELS . |
| Tightening specifications for wheel bolts: | Refer to WHEEL BOLT TIGHTENING SPECIFICATION . |
| Pitch circle diameter: | 112 mm |
| Number of wheel bolt holes: | 5 |
It is Possible To Mount 7 1 / 2 J X 18-Wheels Only Under The Following Conditions:
- Sport suspension VI (sport suspension for 18-inch wheels) must be installed in the vehicle. For the PR number and adjustment values for the suspension, refer to: VEHICLE DATA LABEL

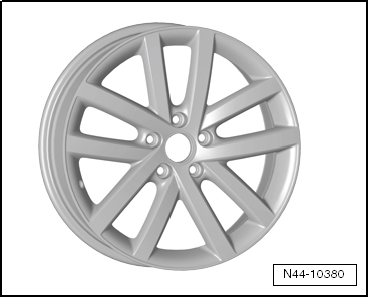

5C0 601 025 L - Aluminum Rim
Observe the Conditions for Mounting, Refer to It is Possible To Mount 71/2 J X 18-Wheels Only Under The Following Conditions: .
| Dimension: | 71 /2 J x 18 |
| Offset (mm): | 51 |
| Wheel load in kg: | 615 |

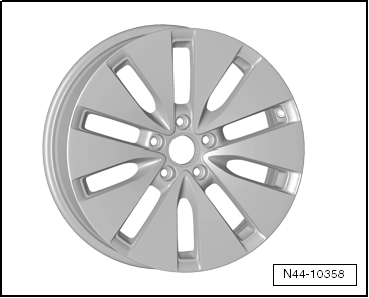

5K0 601 025 AF, 5K0 601 025 AG - Aluminum Rim "WATKINS GLEN"
Observe the Conditions For Mounting, Refer to It is Possible To Mount 71/2 J X 18-Wheels Only Under The Following Conditions: .
| Dimension: | 71 /2 J x 18 |
| Offset (mm): | 51 |
| Wheel load in kg: | 615 |

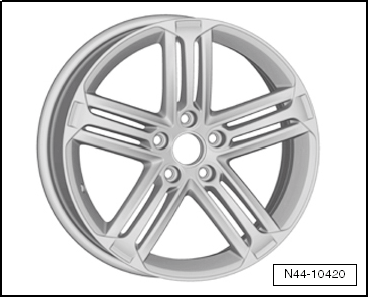

5K0 601 025 H - Aluminum Rim "TALLADEGA"
Observe the Conditions for Mounting, Refer to It is Possible To Mount 71/2 J X 18-Wheels Only Under The Following Conditions: .
| Dimension: | 71 /2 J x 18 |
| Offset (mm): | 51 |
| Wheel load in kg: | 630 |

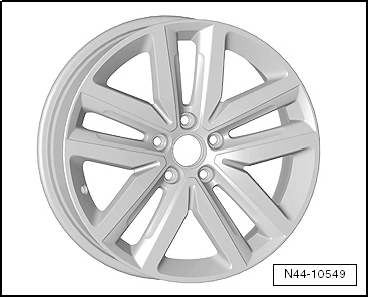

5K0 601 025 L - Aluminum Rim "VANCOUVER"
Observe the Conditions for Mounting, Refer to It is Possible To Mount 71/2 J X 18-Wheels Only Under The Following Conditions: .
| Dimension: | 71 /2 J x 18 |
| Offset (mm): | 51 |
| Wheel load in kg: | 615 |

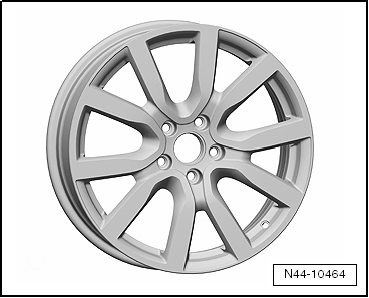

5K0 601 025 P - Aluminum Rim "MALLORY"
Observe the Conditions for Mounting, Refer to It is Possible To Mount 71/2 J X 18-Wheels Only Under The Following Conditions: .
| Dimension: | 71 /2 J x 18 |
| Offset (mm): | 51 |
| Wheel load in kg: | 630 |

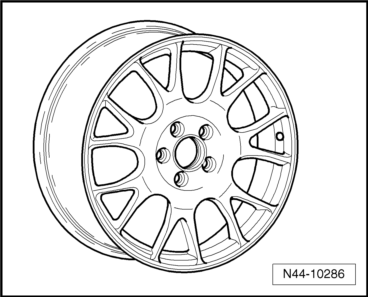

5K0 601 025 AC - Aluminum Rim "SERRON"
Observe the Conditions for Mounting, Refer to It is Possible To Mount 71/2 J X 18-Wheels Only Under The Following Conditions: .
| Dimension: | 71 /2 J x 18 |
| Offset (mm): | 51 |
| Wheel load in kg: | 630 |

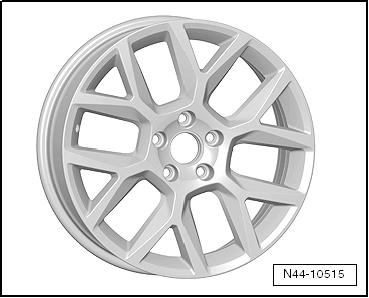

1K0 601 025 BA, 1K0 601 025 AH - Aluminum Rim "DETROIT"
Observe the Conditions for Mounting, Refer to It is Possible To Mount 71/2 J X 18-Wheels Only Under The Following Conditions: .
| Dimension: | 71 /2 J x 18 |
| Offset (mm): | 51 |
| Wheel load in kg: | 615 |

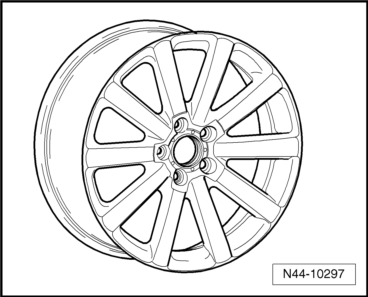

1K0 601 025 AD - Aluminum Rim "ZOLDER"
Observe the Conditions for Mounting, Refer to It is Possible To Mount 71/2 J X 18-Wheels Only Under The Following Conditions: .
| Dimension: | 71 /2 J x 18 |
| Offset (mm): | 51 |
| Wheel load in kg: | 630 |
1K0 601 025 AG - Aluminum Rim "CHARLESTON"
Observe the Conditions for Mounting, Refer to It is Possible To Mount 71/2 J X 18-Wheels Only Under The Following Conditions: .
| Dimension: | 71 /2 J x 18 |
| Offset (mm): | 51 |
| Wheel load in kg: | 630 |
1K0 601 025 AM - Aluminum Rim "DETROIT"
Observe the Conditions for Mounting, Refer to It is Possible To Mount 71/2 J X 18-Wheels Only Under The Following Conditions: .
| Dimension: | 71 /2 J x 18 |
| Offset (mm): | 51 |
| Wheel load in kg: | 615 |
1K0 601 025 AT - Aluminum Rim "ROCKINGHAM"
Observe the Conditions for Mounting, Refer to It is Possible To Mount 71/2 J X 18-Wheels Only Under The Following Conditions: .
| Dimension: | 71 /2 J x 18 |
| Offset (mm): | 51 |
| Wheel load in kg: | 615 |
1K0 601 025 BE - Aluminum Rim "BILBAO"
Observe the Conditions for Mounting, Refer to It is Possible To Mount 71/2 J X 18-Wheels Only Under The Following Conditions: .
| Dimension: | 71 /2 J x 18 |
| Offset (mm): | 51 |
| Wheel load in kg: | 615 |
1K0 601 025 BL - Aluminum Rim "OMANYT"
Observe the Conditions for Mounting, Refer to It is Possible To Mount 71/2 J X 18-Wheels Only Under The Following Conditions: .
| Dimension: | 71 /2 J x 18 |
| Offset (mm): | 51 |
| Wheel load in kg: | 615 |
